Time-Series with Kafka, Kafka Connect & InfluxDB

Watch the Video!

MQTT to Kafka to InfluxDB to view data in Kafka.

Time-series data stores are of particular interest these days and influxDB is a popular open source distributed time-series database.
In this tutorial we will integrate Kafka with InfluxDB using Kafka Connect and implement a Scala Avro message producer to test the setup.

The steps we are going to follow are:

• Setup a docker development environment
• Run an InfluxDB Sink Kafka Connector
• Create a Kafka Avro producer in Scala (use the schema registry)
• Generate some messages in Kafka

Finally, we will verify the data in influxDB and visualize them in Chronograph.

About InfluxDB

Data in influxDb is organized in

time series

points

• time

  : the timestamp

• measurement

  : which conceptually matches the idea of a SQL table

• tags

  : key-value pairs in order to store index values, usually metadata.

• fields

  : key-value pairs, containing the value itself, non indexed.

null

The structure is of the data is:

measurement,tagKey1=tagVal1,tagKey2=tagVal2 fieldK1=fieldV1,fieldK1=fieldV1

Example:

```
INSERT temperature,machineId=1,type=boiler actualTemperature=30,targetTemperature=32
```

Setup the environment

For both the InfluxDB and Kafka ecosystem setup we are going to use Docker.
If you don’t have docker installed on your machine, follow the instructions on their website.

InfluxDB setup with Docker

Run the docker image:

$ docker run -p 8086:8086 -v influxdb:/var/lib/influxdb influxdb

Enter the InfluxDB Shell and create a database and a user:

```
$ influx --host localhost --port 8086
> CREATE DATABASE devices
> CREATE USER root WITH PASSWORD 'root'
> GRANT ALL ON devices to root
```

You may find more info on this docker image here.

Kafka setup with Docker

In order to set up Kafka we will need a set of systems to be installed. We are going to use fast-data-dev docker image, which includes everything we need for this tutorial:

• Kafka Broker
• ZooKeeper
• Kafka Connect
• Kafka REST Proxy
• Schema Registry
• Landoop’s UI tools
• DataMountaineer Connectors (in our case InfluxDB will be used)
• Embedded integration tests with examples.

Run the docker image:

```
docker run --rm -it -p 2181:2181 -p 3030:3030 -p 8081:8081 -p 8082:8082 -p
8083:8083 -p 9092:9092 -e ADV_HOST=localhost landoop/fast-data-dev
```

You may find more on fast-data-dev documentation here.

While this is running for the first time it will run some integration tests and create some topics and connectors for you. You are able to access the landing page for the container at

http://localhost:3030

Once it’s up and running you may access:

• the Kafka Broker logs:

  docker exec <ID> tail -f /var/log/broker.log

• the Kafka Connect logs:

  docker exec <ID> tail -f /var/log/connect-distributed.log

• the docker bash:

  docker run --rm -it --net=host landoop/fast-data-dev bash

IoT example

Data usually originate from somewhere. For example, an embedded sensor can produce data at frequent intervals. For the shake of the example we are going to create a simple Kafka Producer in Scala to transmit some metrics

The data structure looks like this:

```
case class DeviceMeasurements(
                  deviceId: Int,
		              temperature: Int,
      			      moreData: String,
		              timestamp: Long)
```

We are going to send these messages in a Kafka topic named as

device-measurements-topic

InfluxDB sink connector in Kafka Connect

Our

fast-data-dev

plugins

Let’s find the IP address of the docker used by the influxDB container (usually 172.17.0.x)

docker inspect <ID or NAME> | grep IPA

```
   "SecondaryIPAddresses": null,
   "IPAddress": "172.17.0.2",
   "IPAMConfig": null
```

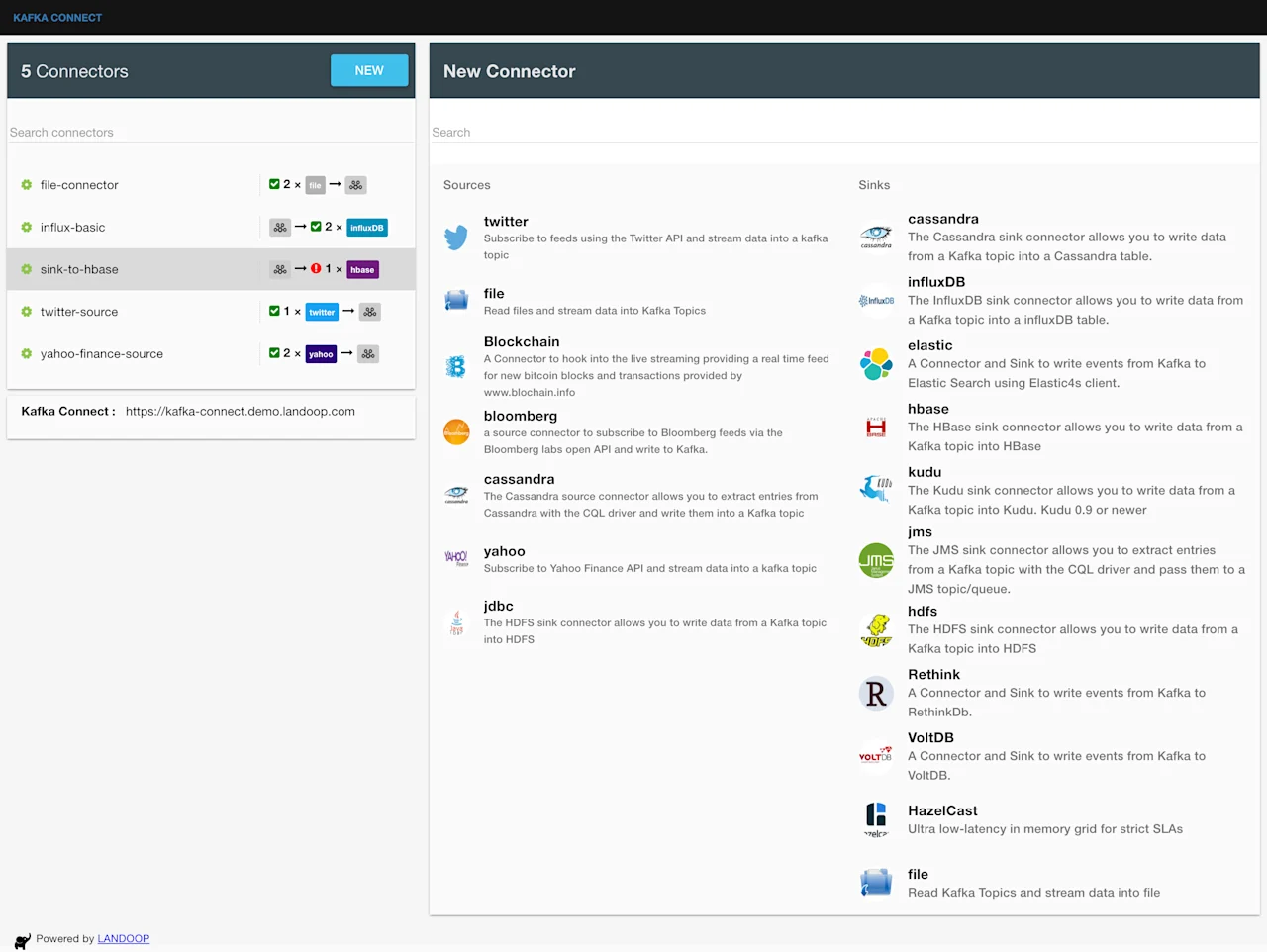

We will now use the kafka-connect-ui to configure the connector:

or from command line:

```
cat << EOF > influxdb.json
{
 "name": "influx-sink-connector",
   "config": {
	  "connector.class": "com.datamountaineer.streamreactor.connect.influx.InfluxSinkConnector",
	  "tasks.max": "1",
	  "topics": "device-measurements-topic",
	  "connect.influx.username": "root",
	  "connect.influx.password": "root",
	  "connect.influx.db": "devices",
	  "connect.influx.url": "http://172.17.0.2:8086",
	  "connect.influx.kcql": "INSERT INTO deviceMeasurement SELECT deviceId, temperature, timestamp FROM device-measurements-topic WITHTIMESTAMP timestamp"
	}
}
EOF
curl -X POST -H "Content-Type: application/json" -H "Accept: application/json" -d @influxdb.json http://localhost:8083/connectors
```

KCQL query explained

InfluxDB Sink connector supports KCQL (Kafka Connect Query Language) and this allows us to filter fields from a Kafka topic without needing to do any extra processing. Let’s say in our case we are only interested in storing the temperature for a particular device in a time series within InfluxDB.

The query looks like this:

```
INSERT INTO deviceMeasurement SELECT deviceId, temperature, timestamp
  FROM topicDeviceMeasurement WITHTIMESTAMP timestamp
```

deviceMeasurement

measurement

Avro Producer using Avro4s

Now lets create a simple producer that sends these types of event messages into Kafka. We are going to use Avro format so that we can maintain the schema of the data in the Schema Registry. In this example both the

key

value

```
import java.util.Properties
import java.util.concurrent.Future

import com.sksamuel.avro4s.{FromRecord, RecordFormat, ToRecord}
import org.apache.avro.generic.GenericRecord
import org.apache.kafka.clients.producer._

class KProducer[K <: Product, V <: Product] {

  val kafkaProps = new Properties()
  kafkaProps.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "127.0.0.1:9092")
  kafkaProps.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG,
     classOf[KafkaAvroSerializer].getCanonicalName)
  kafkaProps.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG,
     classOf[KafkaAvroSerializer].getCanonicalName)
  kafkaProps.put("schema.registry.url", "http://127.0.0.1:8081")
  private lazy val producer  = new KafkaProducer[GenericRecord, GenericRecord](kafkaProps)

  def produce(topic: String, key: K, value: V, partition: Int = 0)
    (implicit to: ToRecord[K], from: FromRecord[K], to: ToRecord[V], from: FromRecord[V])
    : Future[RecordMetadata] = {
    val keyRec = RecordFormat[K].to(key)
    val valueRec = RecordFormat[V].to(value)
    val data: ProducerRecord[GenericRecord, GenericRecord] = new ProducerRecord(topic, partition, keyRec, valueRec)
    producer.send(data)
  }
}
```

Generate messages to Kafka

We create the case classes that describe the schemas for the

key

value

```
import com.github.nscala_time.time.Imports._

import scala.util.{Failure, Random, Success, Try}

object Example extends App {

  case class Key(deviceId:Int)
  case class DeviceMeasurements(deviceId:Int, temperature:Int, moreData:String, timestamp:Long)

  val producer = new KProducer[Key, DeviceMeasurements]()

  for (a <- 1 to 1000) { //you may want to adjust the number of messages here
    val deviceMeasurement = getMeasurement(-10, 50)
    val deviceID = getMeasurement(0, 10)
    val timestamp = DateTime.now().getMillis

    Try(producer.produce("device-measurements-topic",
                         Key(deviceID),
                         DeviceMeasurements(deviceID,deviceMeasurement,"",timestamp)))  match {
      case Success(m) =>
        val metadata = m.get()
        println("Success writing to Kafka topic:" + metadata.topic(),
                      metadata.offset(),
                      metadata.partition(),
                      new DateTime(metadata.timestamp()))
      case Failure(f) => println("Failed writing to Kafka",f)
    }
  }

  def getMeasurement(min:Int, max:Int) = Random.nextInt(max - min) + min
}
```

Check the schema

In your schema registry you will find 2 automatically registered schemas: one for the key called

device-measurement-topic-key

device-measurement-topic-value

We can see the schemas created in

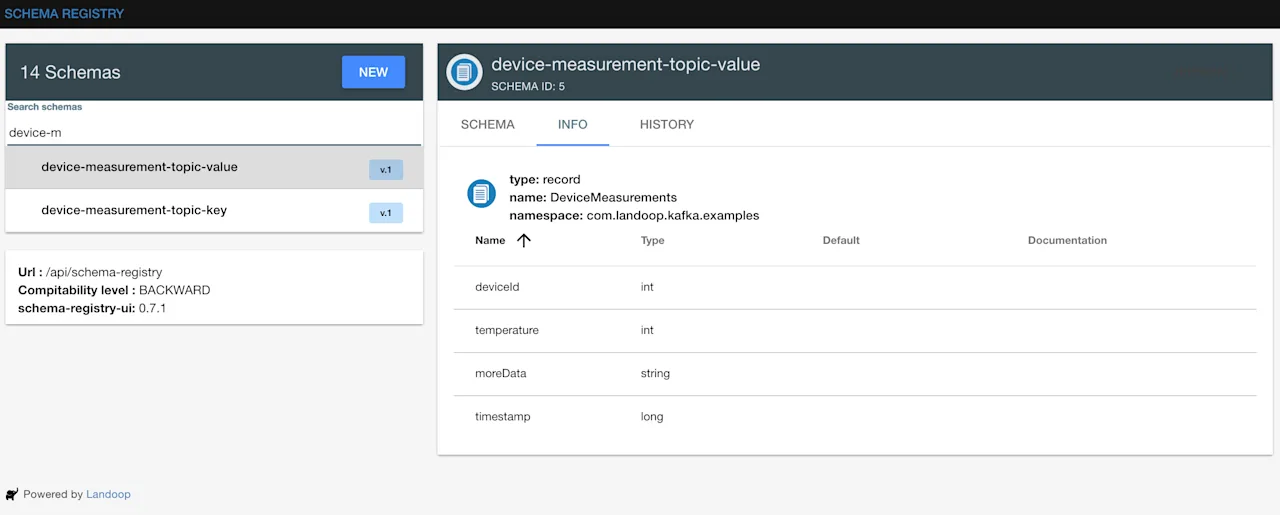

http://localhost:3030/schema-registry-ui

Validate the messages

We can see the Kafka messages generated in

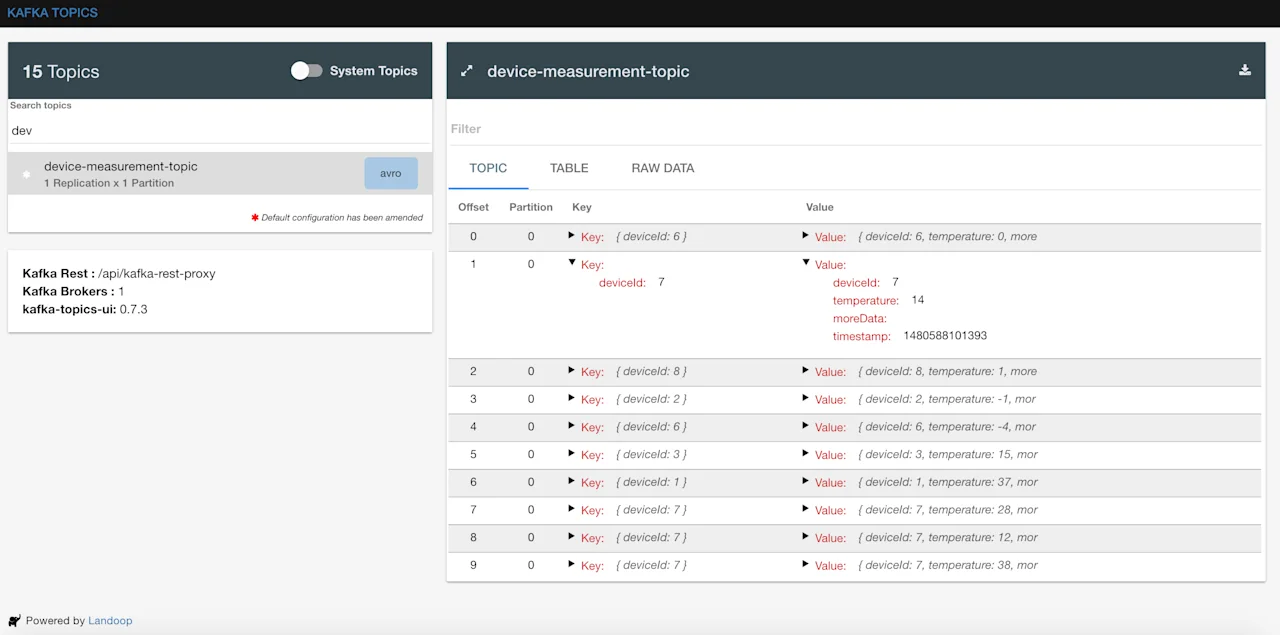

http://localhost:3030/kafka-topics-ui

and also InfluxDB should also be getting data:

```
> USE devices

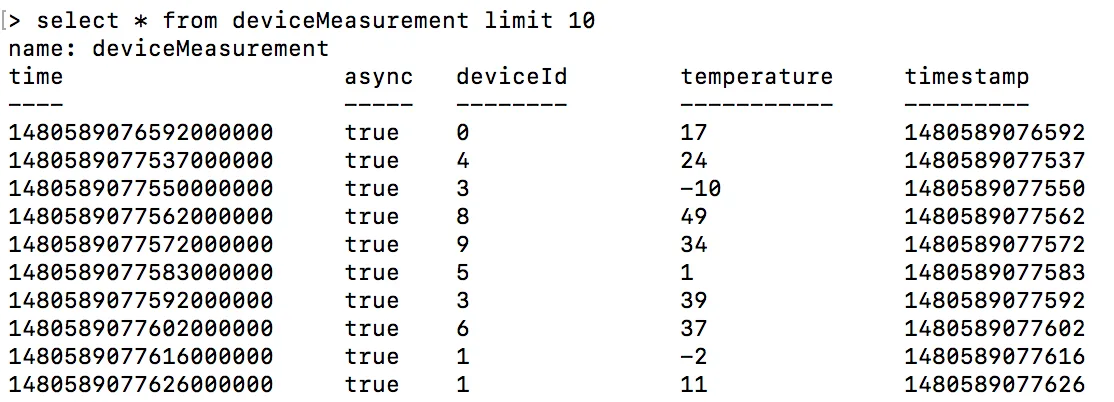

> SELECT * FROM deviceMeasurement
```

Visualise results

InfluxDB provides a visualization tool called Chronograf.

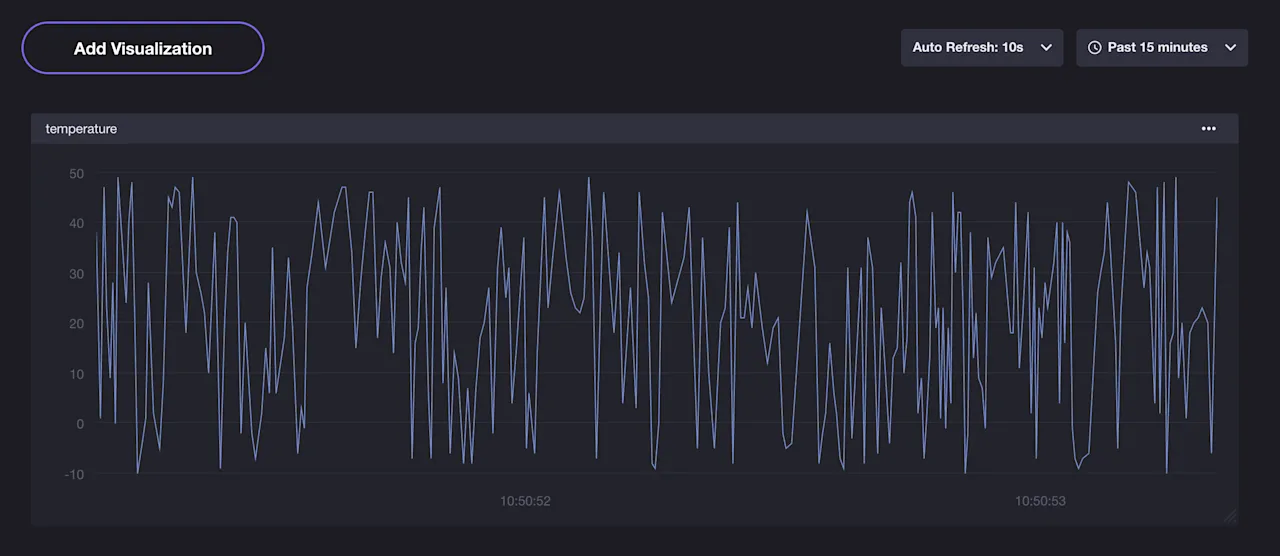

Here is how our time series chart may look like:

More

• Find the code for this example in GitHub
• InfluxBD connector
• InfluxDB docker image
• Landoop fast-data-dev docker image
